Modline
Long stroke with belt is possible

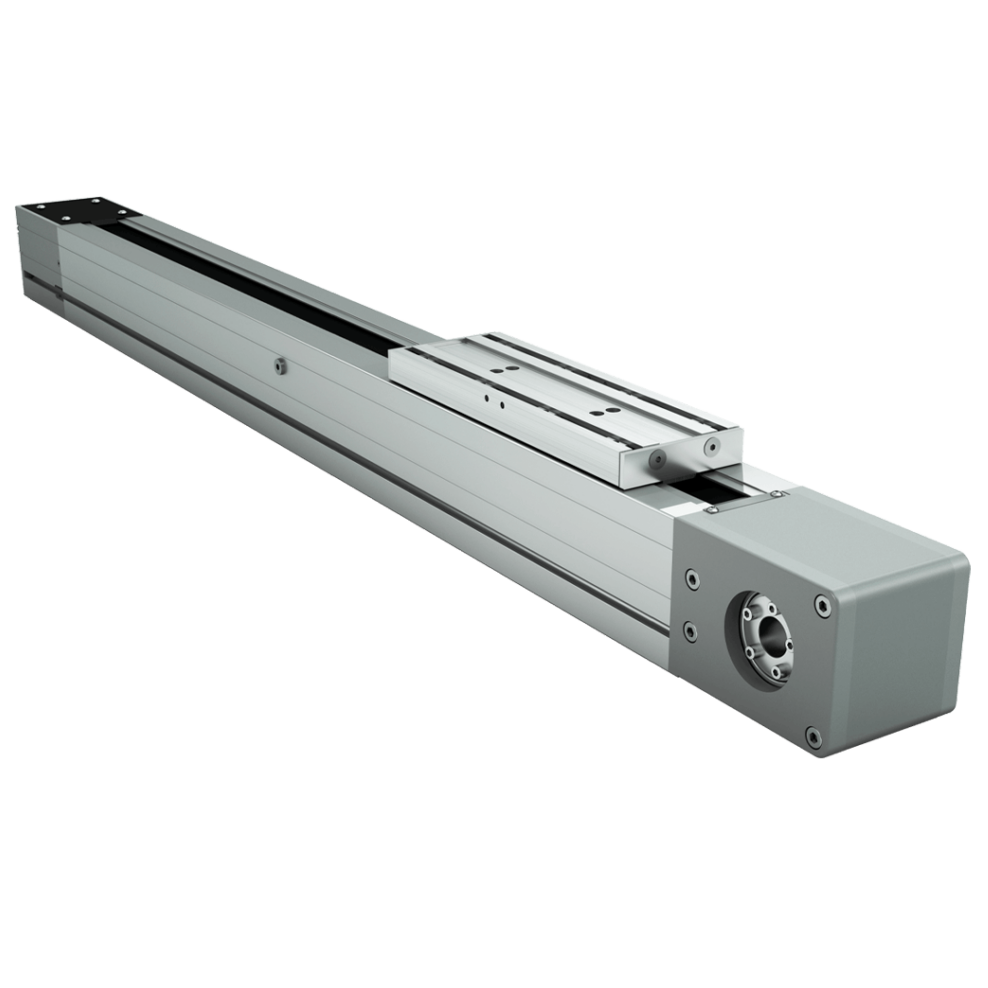

Linear axis with belt drive. Rolling on trapezoidal, round or recirculating ball guides.
Ideal to be combined with Tecline actuators for creating multi-axes cartesian systems.
Patented short belt solution for long strokes
Long strokes with belt axes are now possible thanks to a Rollon patented solution.
Different motion systems
Modline actuators are available with different motion systems:
Recirculating ball guides

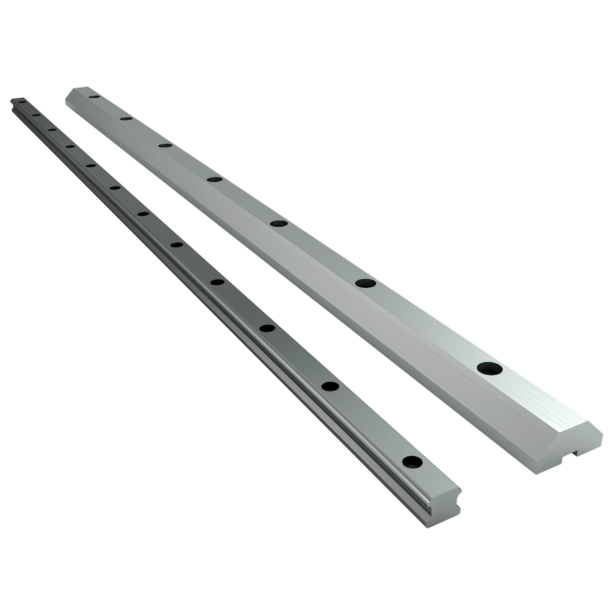

Prismatic roller bearings

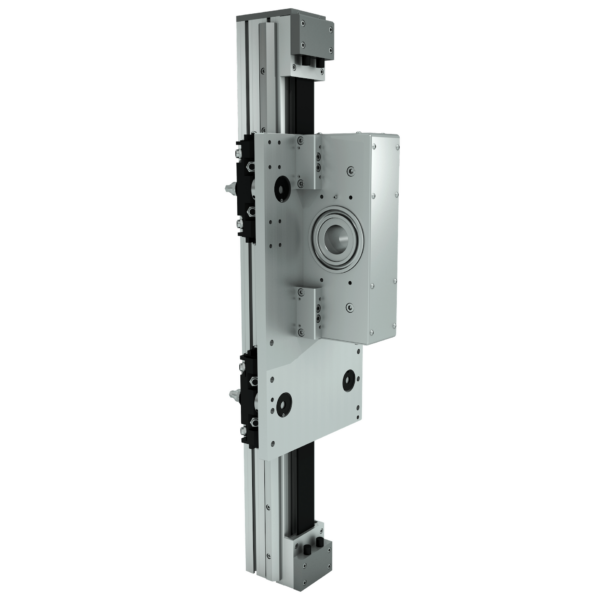

Vertical dedicated solution available
ZCR/ZCH are the ideal solution for vertical movements
Fixed carriage and movable profile
Omega belt system

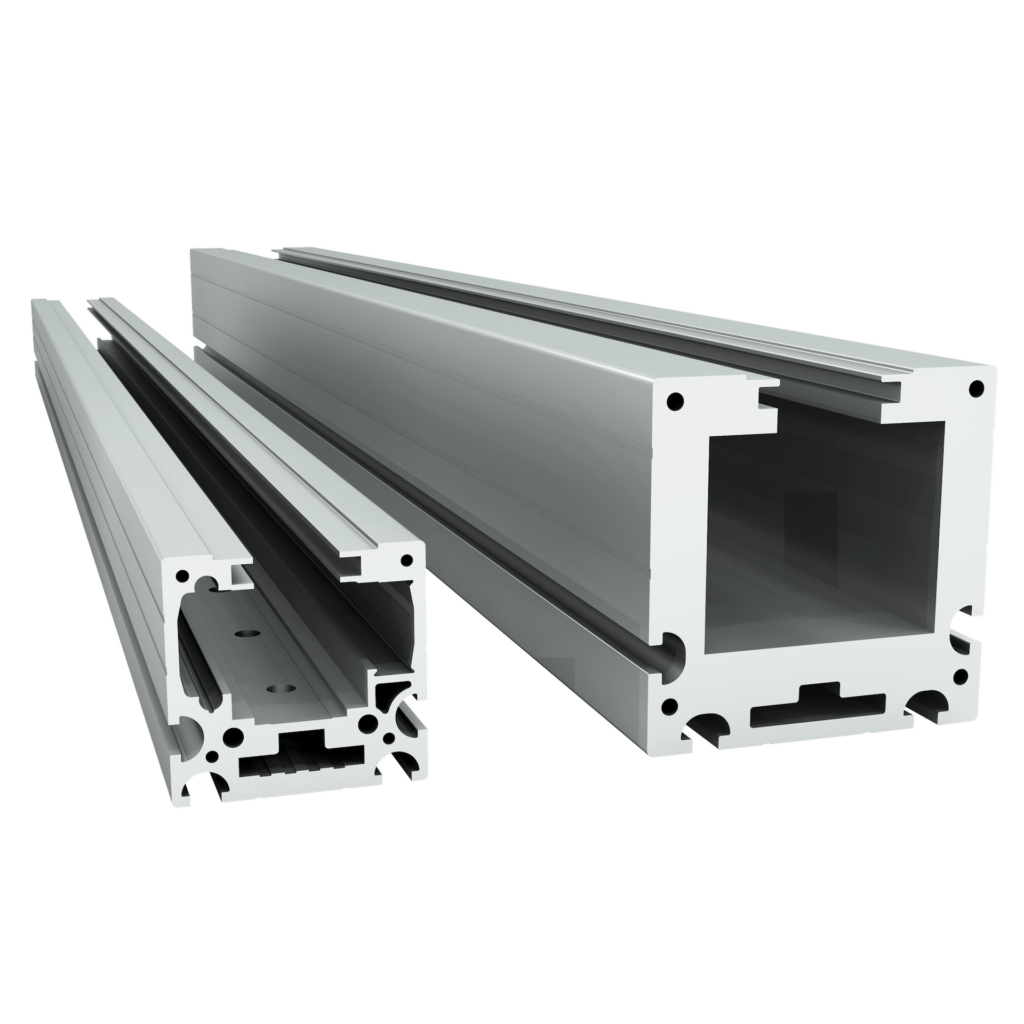

Wide range of profiles
The aluminium profiles are available in different sizes:
60 – 65 – 80 – 90 – 100 – 105 – 140 – 170 – 200 – 220 – 230 – 280 – 360 (mm)
Versatile for multiple configurations
